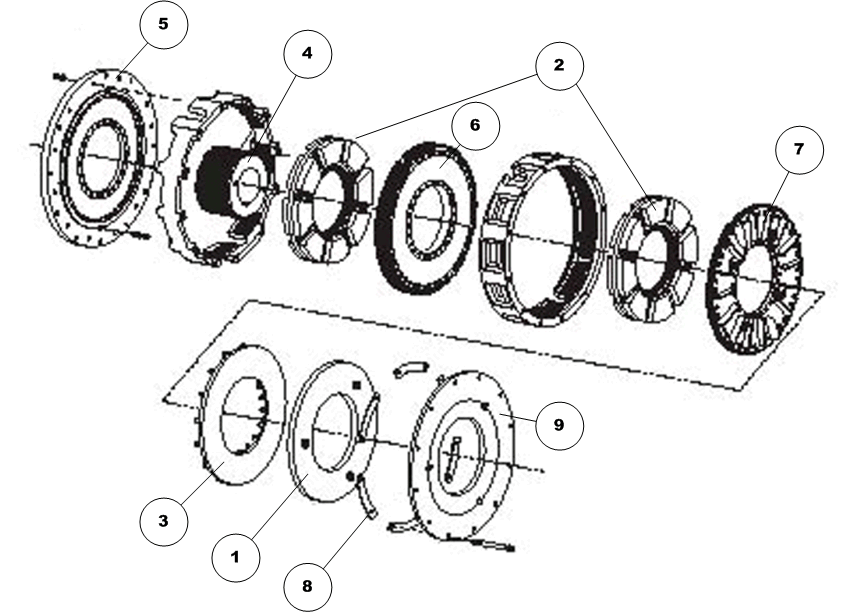

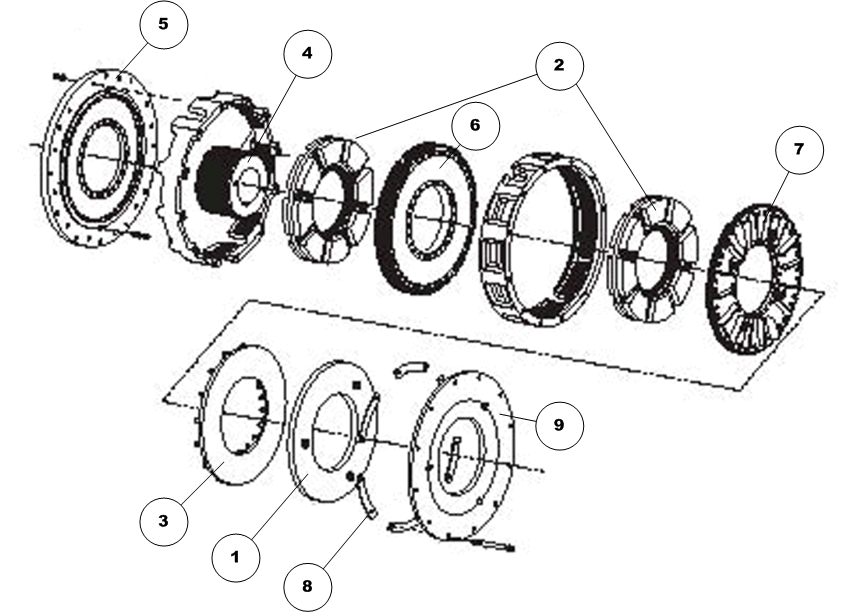

PART DESCRIPTION

BALLOON KKB
FIGURE E

QUAN. REQ.

AIRTUBE

1

DRIVE PLATE ASSY*

2

COPPER WEAR PLATES*

NOT DETAILED

HARDWARE*

NOT DETAILED

O-RINGS*

NOT DETAILED

PRESSURE PLATE

3

HUB

4

SPRINGS

ASSY. DEPENDENT

BACK WATERJACKET ASSEMBLY

5

CENTER WATERJACKET ASSEMBLY

6

FLOATING WATERJACKET ASSEMBLY

7

SHIMS

8

AIRTUBE HOLDING PLATE

9

* REBUILD KIT WITH COMPLETE DRIVE PLATE ASSEMBLY

* REBUILD KIT WITH LOOSE FRICTION MATERIAL
